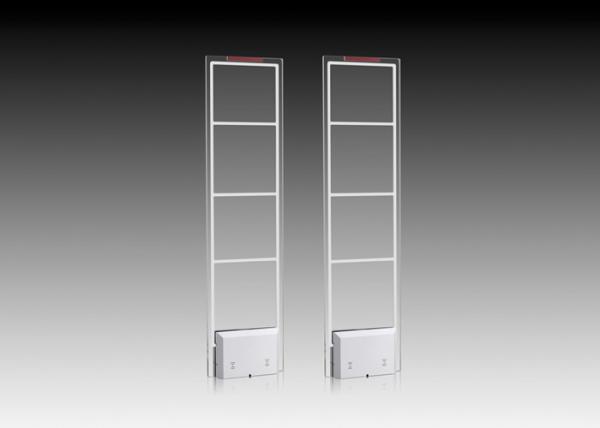

EAS rf system white arcylic antitheft gate remote control security
alarm high detection
1. Original developed for EAS board and antenna, providing OEM &
ODM service for customers.
2. Remote control, WiFi, software tuning.
3. People counting IN & OUT, separeted IN or OUT.
4. Lease time control: especially designed to prevent shop owners
from delaying or refusing payment after installation.
1. Frequency: 8.2MHz
2. Voltage: 24V DC
3. Color: Silver
4. Detection: 4*4 label: 180~200cm; Hard tag: mini 170cm, midi
180cm, large 190cm
5. Size & Weight: 153*39*2cm, 16kgs
6. Packing: 1pcs/ctn,164*41.5*15cm, 23.7kgs
| 4200 Detection range |
| Soft label | 150 ~ 170cm |
| Mini square tag | 150 ~ 170cm |
| R50 Tag | 160 ~ 180cm |
| Midi golf tag | 170 ~ 190cm |
| Large square tag | 190 ~ 210cm |
| 5003 Detection range |
| Soft label | 100 ~ 120cm |
| Mini square tag | 100 ~ 120cm |
| R50 Tag | 110 ~ 130cm |
| Midi golf tag | 110 ~ 130cm |
| Large square tag | 130 ~ 150cm |
| 5003 Mono + Passive Detection range |
| Tag | Channel | Mono | Passive |
| Soft label | 140 ~ 160cm | 80 ~ 100cm | 40 ~ 60cm |
| Mini square tag | 160 ~ 180cm | 90 ~ 110cm | 40 ~ 60cm |
| R50 Tag | 170 ~ 190cm | 100 ~ 120cm | 60 ~ 80cm |
| Midi golf tag | 170 ~ 190cm | 90 ~ 110cm | 60 ~ 80cm |
| Large square tag | 190 ~ 210cm | 110 ~ 130cm | 90 ~ 110cm |
*** 1. You can manage every shop on the Internet. Once you install
the system for one shop, you can record it. Usually, the system has
no problem. But if, you only need to tune on the Internet, whcih
saves a lot of cost. Anyway, there is percent that you have to vist
the shop by yourself.
2. If there is false alarm, you can increase the hit_count which
will decrease the sensitivity, and vice versa.
3. If the shop owners refuse or delay the payment, you can set the
lease time on the Internet, such as 1 months. After the time ends,
the system stops working, no any detection.
4. You can vuiew the people flow of everyday (IN or OUT ot TOTAL).
5. Your clients can also enter this web. (If needed, we will
customize for you).
*** 1. About the software, the interface is clear and easy to tune.
2. There are 2 types of software for 4200, 5003 and 8000. One is
for individual, the other is for all.
